My Wood
My Wood 68, My Wood 89, My Wood Minimal

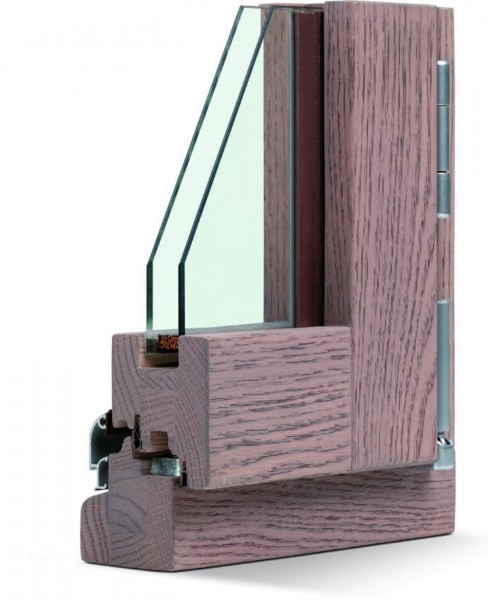

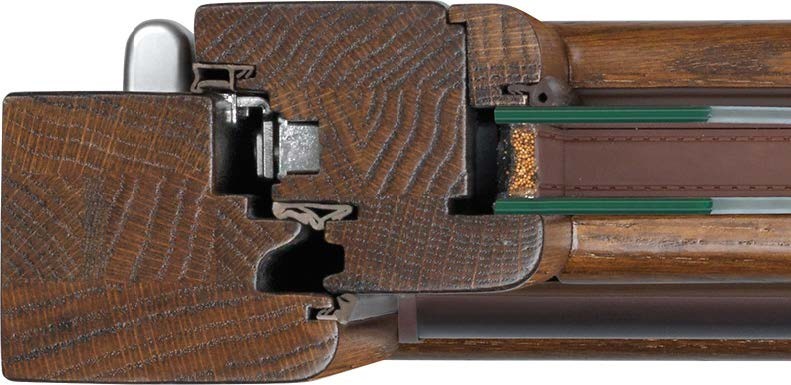

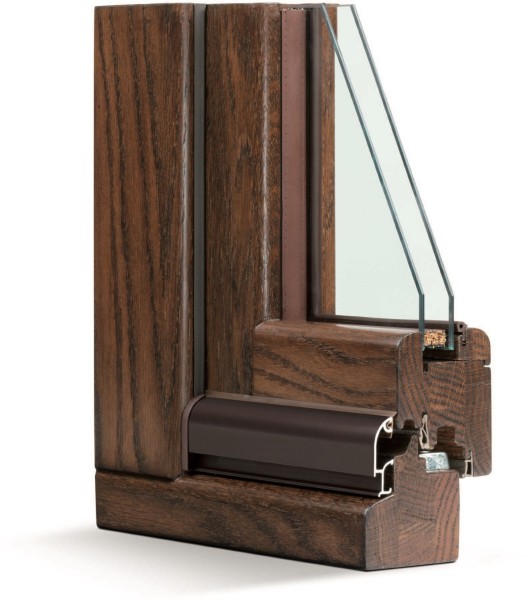

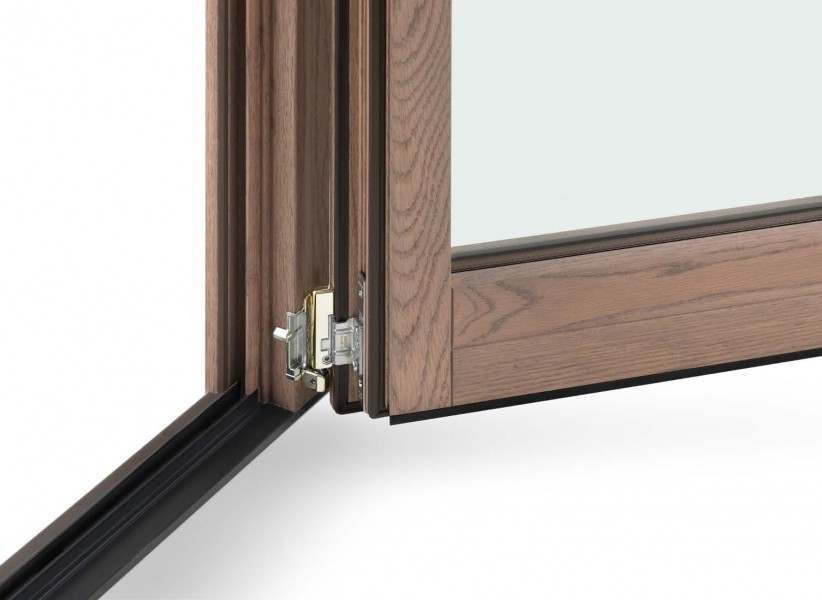

An evergreen wooden window frame, the perfect combination of tradition and innovation, made with cutting edge techniques without ignoring the strong links with the past: manufactured with three layers of laminated wood in Pine or Okoume (standard) or Oak (optional). The structure is assembled as per tradition with dovetail joints, and pins and screws, in order to guarantee a product that does not deform over time and that performs perfectly over the years: in fact the product is guaranteed for 10 years.

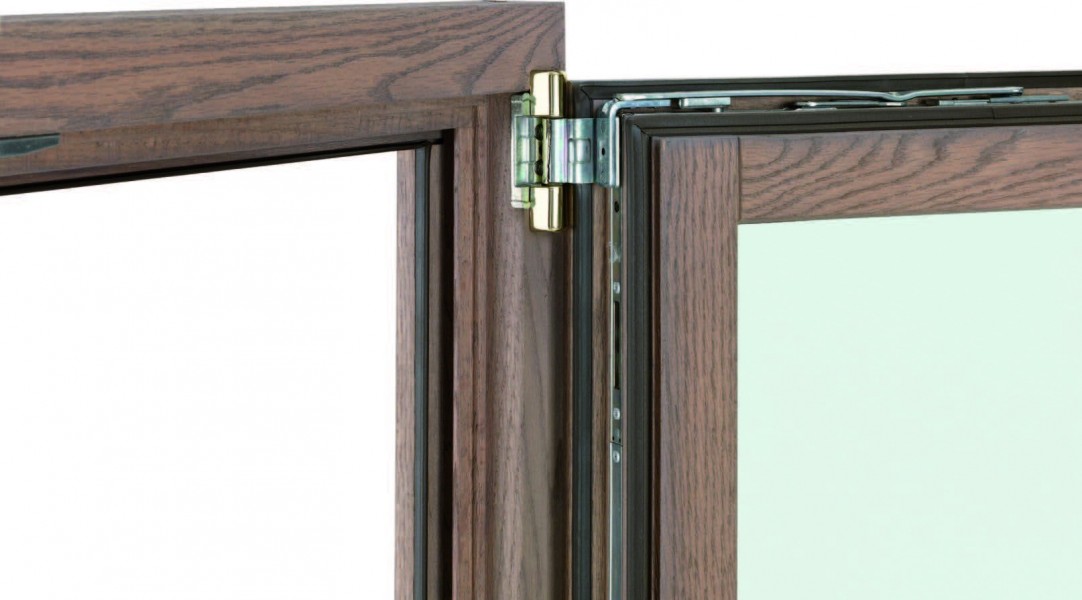

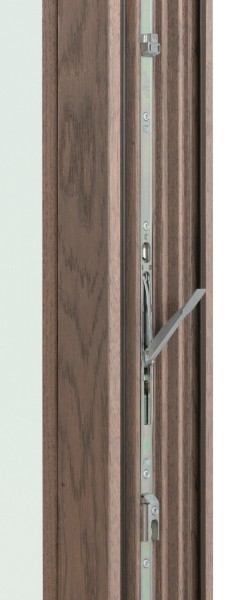

Nothing is left to chance for the MY WOOD line: like the other models, the gaskets and the “warm edge” spacers are in matching colours, and a standard tilting window and selective four-season glass are just some of the accessories we install as standard on all our windows, in order to guarantee comfort and respect for tradition.
| Technical features | |
|---|---|
| CASEMENT SECTION: | 68x81mm |
| FRAME SECTION: | 68x80mm |
| Uw STD: | 1,3 |
| OBTAINABLE Uw: | 1,1 (a value of 1.1 can be achieved only with MYWOOD 89line and with a triple glazing with Ug 0.6) |
| AIRTIGHTNESS: | classe 4 |
| WATER TIGHTNESS: | classe 8A |
| WIND LOAD RESISTANCE: | classe C3 |
| STD GLASS COMPOSITION WITH Ug = 1 | 33.1+18 warm edge and argon gas +4 selective |
| VETRO TOP PERFORMANCE COMPOSIZIONE CON Ug = 0,6 | 33.1basso emissivo+15 warm edge e gas argon +4 temperato +12 warm edge e gas argon +4 basso emissivo |
| STD SOUND REDUCTION: | 35 dB |
| MAXIMUM SOUND REDUCTION ACHIEVABLE WITH GLASS COMPOSITION: | 66.2 acoustic glass +20 warm edge and argon gas +44.2 acoustic low emissivity 48 dB (only MYWOOD 89) |

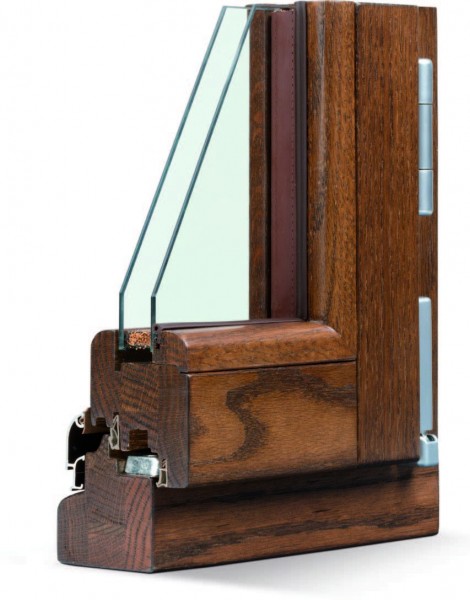

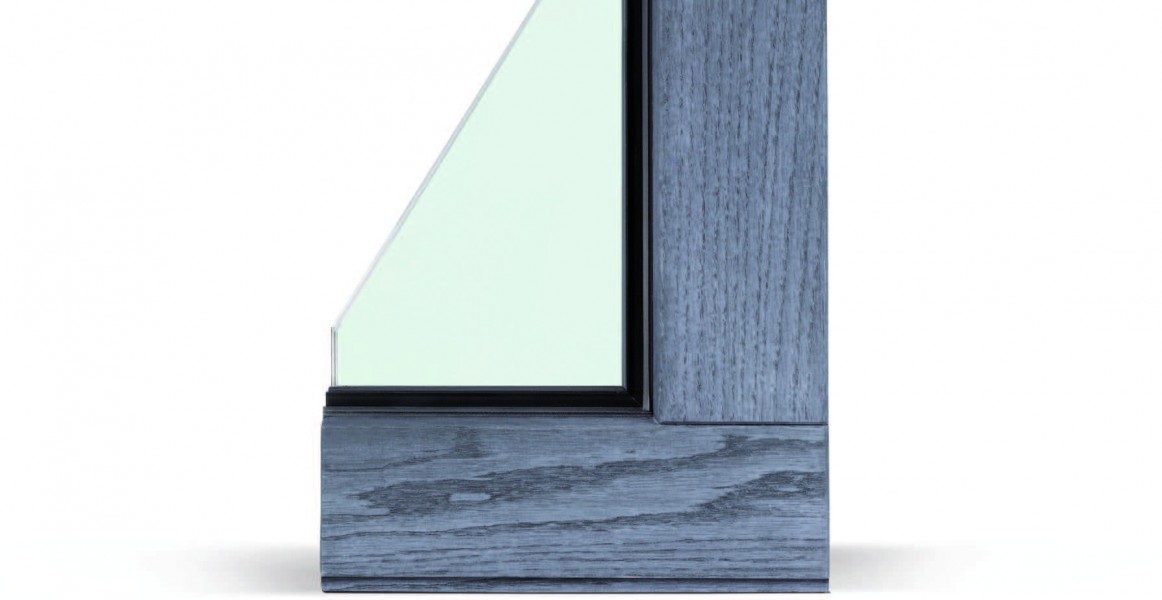

My Wood 68
My Wood “INSERT”

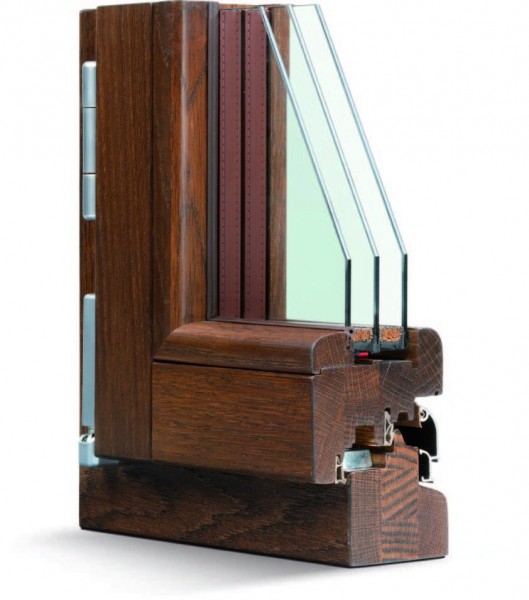

My Wood 89

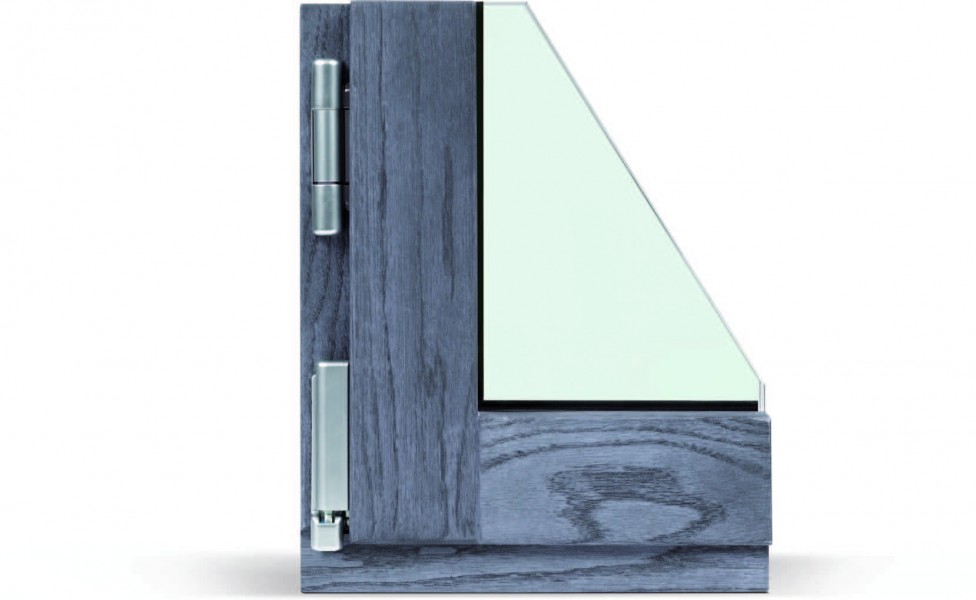

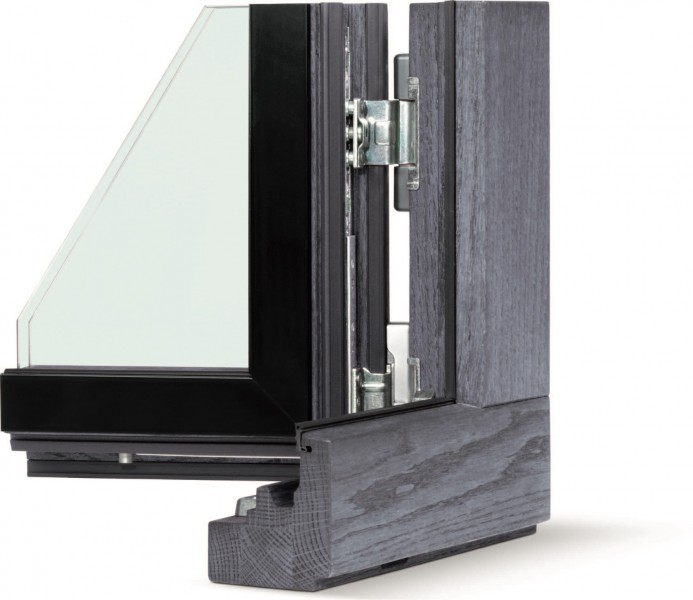

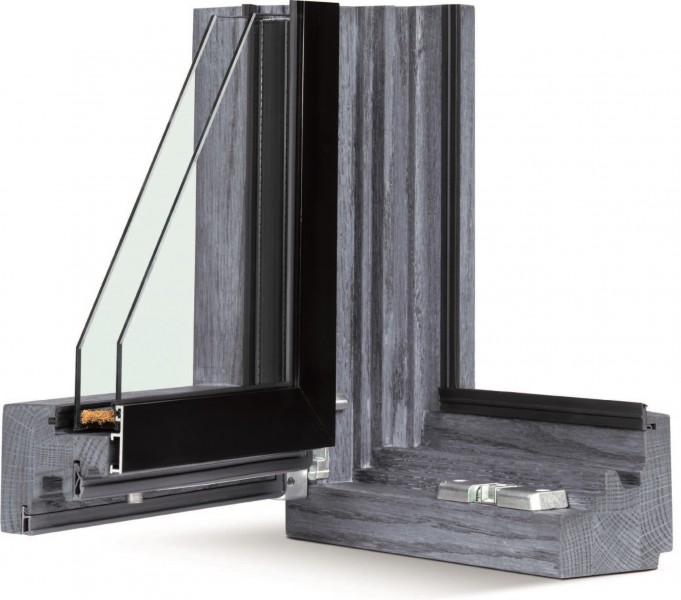

My Wood Minimal
