Leader
Leader 82, Leader 75, Leader Minimal

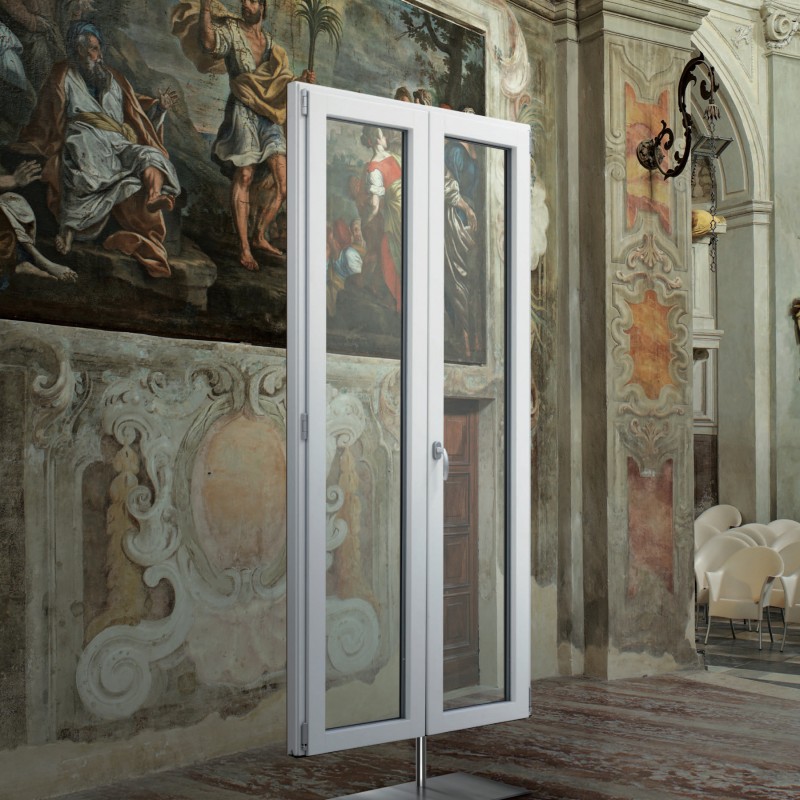

A wood-aluminium window frame featuring high energy savings, which has been designed to exploit the characteristics of these two materials, combining them in the best possible way, to guarantee compliance with Win Project’s high standards.
The system makes it possible to have a wooden window (pine or okoume as standard, oak on request) on the inside of the home, while to limit wear and tear, an aluminium profile is used on the outside, also acting as the glazing bead.
| Technical features | |
|---|---|
| CASEMENT SECTION: | 103x81mm ( LE82) ; 85x72 mm (LE 75) |
| FRAME SECTION: | 82x89mm (LE82); 75x75 (LE 75) |
| Uw STD: | 1,3 |
| OBTAINABLE Uw: | 1,0 with triple glazing Ug 0,6 only on lines provided with glazing bead |
| AIRTIGHTNESS: | classe 4 |
| WATER TIGHTNESS: | classe E1050 |
| WIND LOAD RESISTANCE: | classe C5 |
| STD GLASS COMPOSITION WITH Ug = 1 | 33.1+20 warm edge and argon gas +4 selective |
| TOP PERFORMANCE GLASS COMPOSITION WITH Ug = 0.6 | 33.1 low emissivity +15 warm edge and argon gas +4 tempered +12 warm edge and argon gas +4 low emissivity |
| STD SOUND REDUCTION: | 35 dB |
| MAXIMUM SOUND REDUCTION ACHIEVABLE WITH GLASS COMPOSITION: | 66.2 acoustic glass +20 warm edge and argon gas +44.2 acoustic low emissivity 48 dB |
Leader75
Leader Minimal
